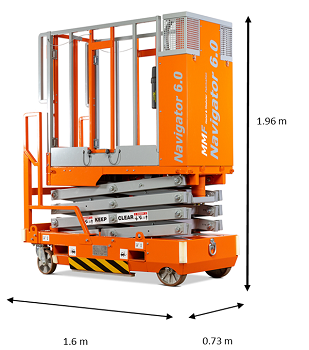

Navigator 6.0 Eco Push Around Scissor Lift (6.0m Working Height)
Specification:
• Working Height: 6.0 m
• Working Platform: 4.0 m
• Working Footprint: 1.6 x 0.73 m
• Platform Dimensions: 1.1 x 0.69 m
Closed Dimensions:
1.6m x 0.73m x 1.96m (LxWxH)
Rated load, manual force and weight:
- Safe working load: 150 kg
- Maximum side force: 200 N
- Maximum Windspeed (outdoor): 12.5 m/s
- Maximum Gradient: 1 degree
- Maximum Load per Fixed Wheel: 800 Kg
- Maximum Load per Swivel Castor: 2000 Kg
- Machine Weight: 500 Kg
The Navigator 6.0 is the first self-powered push-around scissor lift achieving a working height of 6.0 metres. The eco friendly lift allows the operator to swiftly and effortlessly manoeuvre the unit in to place before effortlessly winding up to the necessary working height.
To put in to context how green to navigator 6.0 is… a typical site may have on average 80 push around machines. Each machine will have a charging time of 4-5 hrs, generating 1.47Kg of Co2 emissions per charge, per machine. This equates to over 9000Kg of Co2 over a typical hire period of 2-3 months… The Navigator has zero emissions!
Safety Features:
- Tethering Accessories for Tools
- Anti-Surf Brakes
- Transport and Deck Lock
- Outriggers
- Winch Point
- Optional Brick Guard
Applications:
General construction; HVAC; pipe work; M&E; painting; retail; building and industrial maintenance in offices, schools, factories, warehouses and more.
CPA Terms & Conditions
Under the terms of hire contract, the plant is hired under Construction Plant-hire Association (CPA), please find copies attached.
MODEL CONDITIONS FOR THE HIRING OF PLANT (With effect from July 2011) These conditions are not to be used for consumer contracts. A consumer contract is a contract entered into with a person acting in their own capacity and not for or on behalf of any business or trade entity. Read PDF below
2011 Hire Contract Terms and Conditions for Consumers for Plant and Equipment Supplied without an Operator. Read PDF >
2011 Hire Contract Terms and Conditions for Consumers for Plant and Equipment Supplied with an Operator. Read PDF >
Under the terms and conditions of hire, once the machine has either been delivered to site or collected from one of our depot you “the customer” assumes all responsibility for the safe use and daily checks of the machine under the “CPA model conditions of hire”.
This includes all loss and damage that could occur through its use.
